| Woofer Size | in [mm] |
| 6×8 [160×200] |

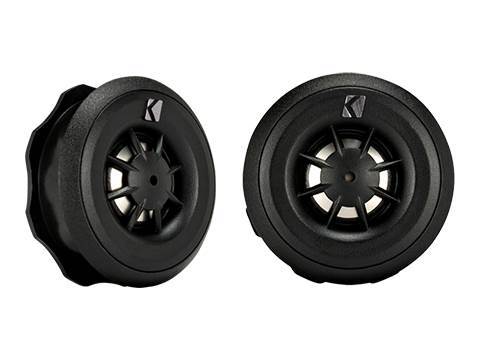

| Tweeter Size | in [mm] |
| 3/4 [20] |
| Dome Material |
| Titanium |
| Peak Power | [watts] |
| 225 |
| Continuous Power | [watts RMS] |
| 75 |
| Effective Frequency Range | Hz |
| 40-21k |
| Woofer Mounting Hole Diameter | in [mm] |
| 5 x 7 3/16 [126×182] |
| Woofer Bottom Mount Depth | in [mm] |
| 2 3/16 [56] |
| Flush Mounting Tweeter Hole Diameter | in [mm] |
| 1 9/16 [40] |
| Flush Mount Tweeter Depth | in [mm] |
| 9/16 [14.5] |
| High Pass | dB, at Frequency | Hz |
| 12, 4000 |
| Low Pass | dB, at Frequency | Hz |
| 12, 4000 |
| High Frequency Output Attenuation | dB |
| 0, 3, & 6 |
| Bolt-Thru Grilles |
| No |
