| Line | Linha TS |
| Reference | TS 1200×2 |
| Operation Class | Classe D |
| Number of Channels | 2 |
| Max Output Power | @ 13,8 VDC – 1 OHM – 1200 W RMS (2 x 600W RMS) @ 13,8 VDC – 2 OHMS – 750 W RMS (2 x 375W RMS) Em Bridged @ 13,8 VDC – 2 OHMS – (1 x 1200W RMS) |
| Input Sensitivity | 250mV (Com o Level a 100%) |
| Signal Noise/Ratio | >98dB |
| Frequency Response | 10Hz a 45KHz(-1dB) |
| Crossover High Pass (HPF) | 80Hz a 2.2KHz(-12dB/8ª) |
| Crossover Low Pass (LPF) | 80Hz(-12dB/8ª) |
| Efficiency | 83% |
| Input Impedance | 10K OHMS |
| Protection System | Curto na Saída / Baixa impedância |
| Minimum Supply Voltage | 9VDC |
| Maximum Supply Voltage | 18VDC |
| Idle Consumption | @13,8VDC. 1,60A |
| Musical Maximum Consumption | @13,8VDC. 52,3A |
| Sinusoidal Signal Maximum Consumption | (1Khz) 13,8VDC. 104,7A |
| Dimensions (WxHxD) | 226 x 55 x 218mm |
| Weight | 1,70Kg |

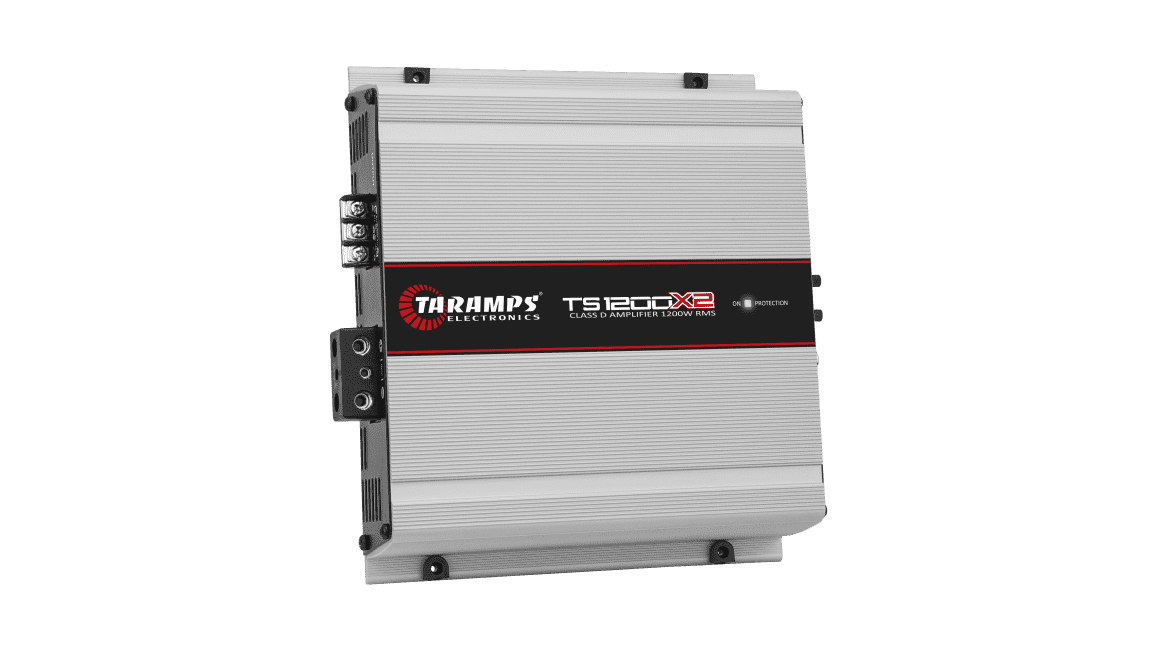

TS 1200×2 – 1 Ohm
