| Line | Line TL |
| Reference | TL 1800 (3 canais) |
| Operation Class | Class D |
| Number of Channels | 03 |
| Max Output Power | @ 13,8 VDC – 2 x 85W RMS (STEREO 2 OHMS) – 1 x 360W RMS ( SUB 2 OHMS) |
| Input Sensitivity | RCA Input= 320mV Wire Input = 6,0V |
| Signal Noise/Ratio | > 90dB |
| Frequency Response | Output Mono: 10Hz to 30kHz (with LPF filter in the FULL position) Stereo L / R outputs: 90Hz to 30kHz with active frequency cut-off (-12dB / 8th) |
| Bass Boost | Adjustable from 0 to 10dB @ 50Hz |
| Input Impedance | 10K OHMS (RCA) – 1K OHMS (Wire) |
| Protection System | Short into Output / Thermal Protection |
| Maximum Supply Voltage | 16 VDC |
| Idle Consumption | 1,3 Amp. |
| Musical Maximum Consumption | @ 13,8VDC: 25 Amp. |
| Sinusoidal Signal Maximum Consumption | (1kHz) 13,8VDC: 50 Amp. |
| Dimensions (WxHxD) | 134 x 45 x 213mm |
| Additional Information | This amplifier features Remote Auto (if using the wire input). |

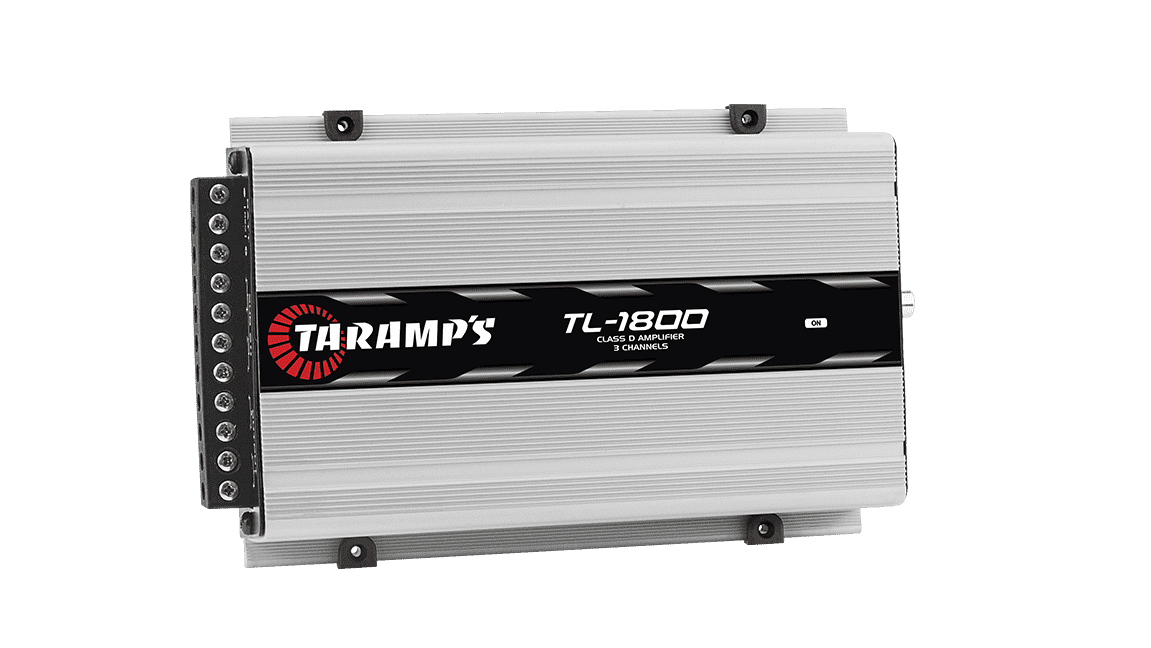

Amplificador Classe D 530 watts RMS (2 canais 85W-2Ω /1 canal 360W-2Ω)
