| Line | Line TS |
| Reference | TS 400×4 |
| Operation Class | Class D |
| Number of Channels | 04 |
| Max Output Power | @ 13,8 VDC – 2 OHMS – 400 W RMS (4 x 100W RMS) @ 13,8 VDC – 4 OHMS – 252 W RMS (4 x 63W RMS) Bridged @ 13,8 VDC – 4 OHMS – 400W RMS (2 x 200W RMS) |
| Input Sensitivity | 200mV (Vol = máx.) |
| Signal Noise/Ratio | > 90dB |
| Frequency Response | (Full Range): 20Hz to 30kHz (-1dB) |
| Crossover High Pass (HPF) | 100Hz(-12dB/8ª) |
| Crossover Low Pass (LPF) | 100Hz(-12dB/8ª) |
| Eficiência do Estágio de Saída | > 90% |
| Input Impedance | 22K OHMS |
| Protection System | Short into Output and Thermal |
| Maximum Supply Voltage | 16 VDC |
| Idle Consumption | 1 Amp. |
| Musical Maximum Consumption | @ 13,8VDC: 19 Amp. |
| Sinusoidal Signal Maximum Consumption | (1kHz) 13,8VDC: 38 Amp. |
| Dimensions (WxHxD) | 134 x 42 x 144mm |

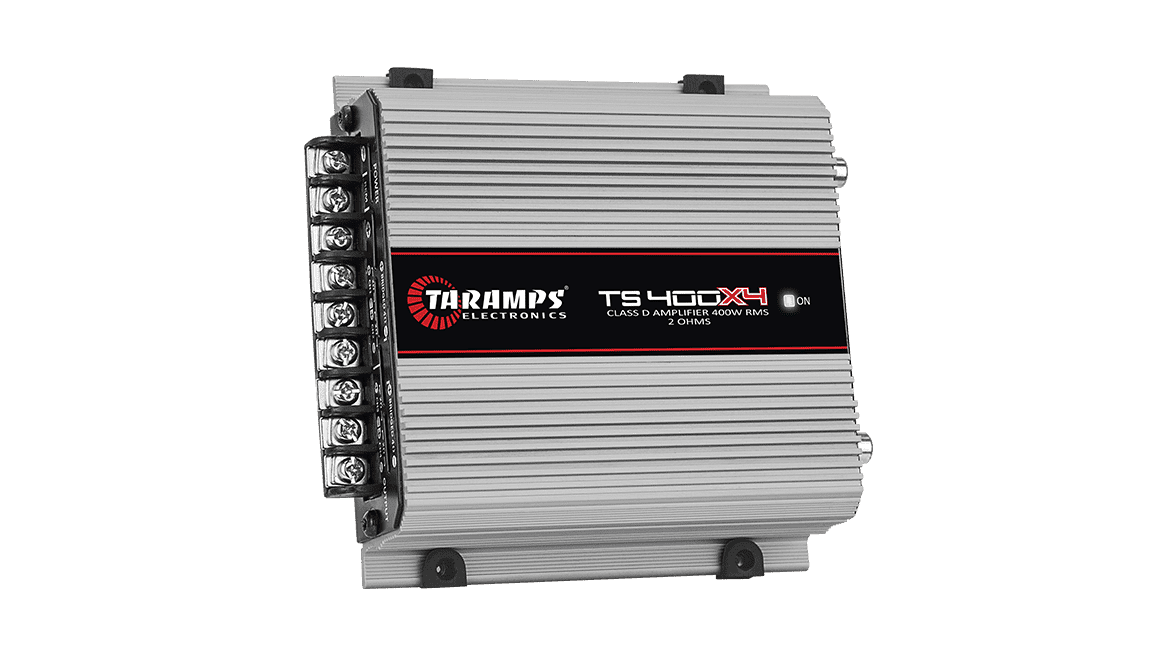

TS 400×4
